CMi2130

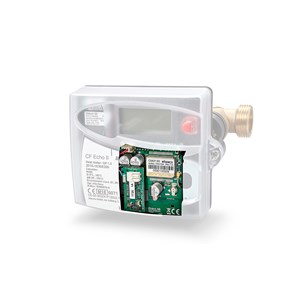

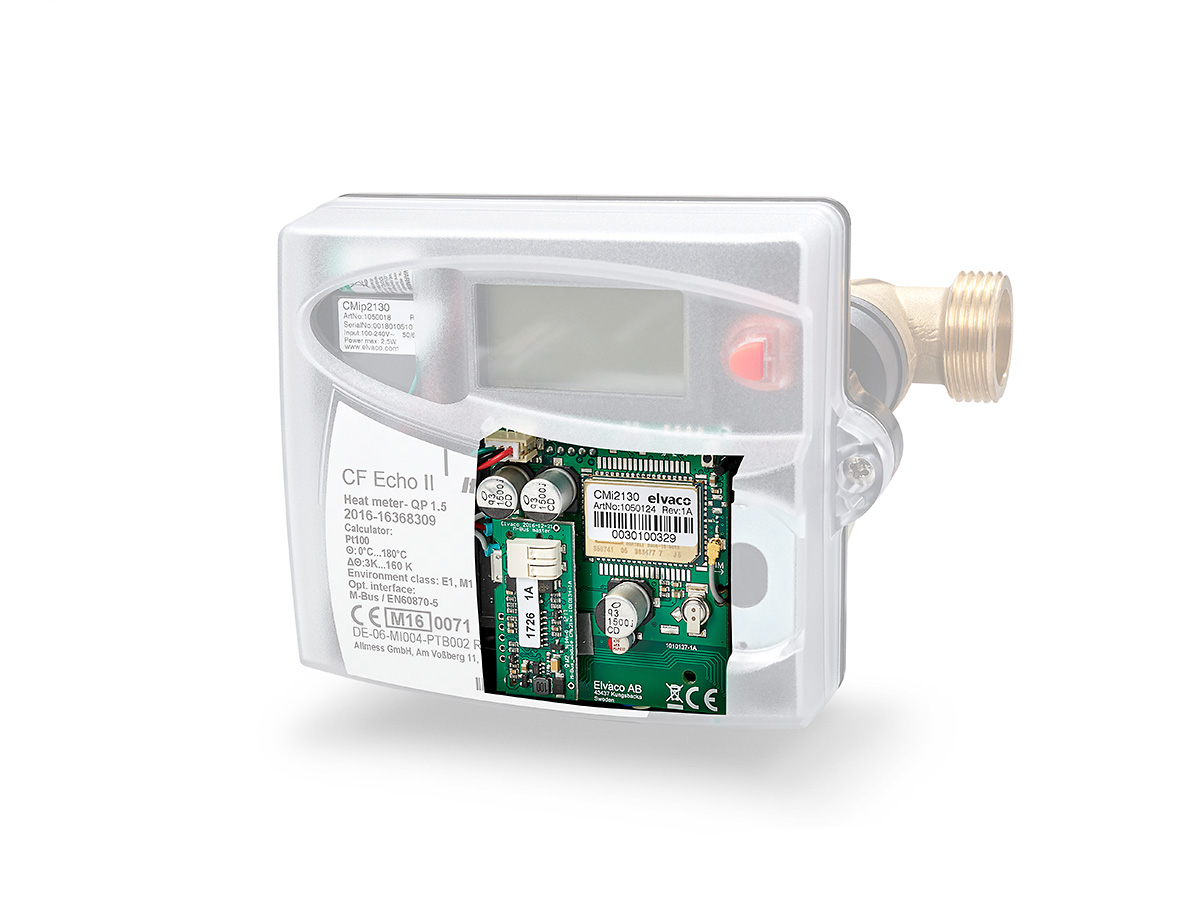

CMi2130 - Integrerad MCM för Itron CF ECHO II

CMi2130 is a powerful and versatile meter connectivity module which is mounted inside an Itron CF ECHO II heat meter to act as a Gateway for the mobile network. The module is easily installed through text messages and is thereafter ready to read the meter by a set time schedule and deliver customized meter data reports to a receiving system via the mobile network.
  • Total: 3

CMi2130 (gen.3) Retrofit Kit (8T/128 meters), 230V, Magnet-mount antenna,

CMi2130 (gen.3) Integrated MCM for Itron CF ECHO II (8T/128 meters)

CMi2130 (gen.3) Retrofit Kit (0T/0), 230V, Magnet-mount antenna (End of life)

  • Total: 3

Mechanics

Dimensions (w x h x d):
56 x 65 x 21 mm
Protection class:
IP64
Mounting:
Itron CF 51/55/ECHO II module slot

Electrical connections

Supply voltage:
Internal power supply
M-Bus master port:
Push-pull connector, cable area 0.2-0.75 mm²
USB slave port:
Type micro B
Network:
Mobile (Radio)

Electrical characteristics

Nominal voltage:
100-240 VAC (±10%)
Frequency:
50/60 Hz
Power consumption (max):
<6 W
Power consumption (nom):
<1 W
Installation category:
CAT 2

Environmental specifications

Operating temperature:
-20 °C to +55 °C
Operating humidity:
5 % to 90 %, non-condensing
Operating altitude:
0-2000 m
Pollution degree:
Degree 2
Usage environment:
Indoors
Storage temperature:
-40 °C to +85 °C

Temperature sensor, margin of error

Humidity sensor, margin of error

User interface

Green LED:
Power
Red LED:
Error
Yellow LED:
GSM status
Blue LED:
USB active
Push button:
Factory reset
Configuration:
SMS, HTTP, GSM CSD, Telnet

M-Bus

Interfaces:
Integrated M-Bus Master
M-Bus standard:
EN 13757
Transparent M-Bus:
GSM and TCP/IP (software limit does not apply to transparent M-Bus mode)
Decryption:
No

Wireless M-Bus

Integrated M-Bus Master

M-Bus baud rate, master port:
2400 and 9600 bit/s
Maximum number of M-Bus devices (software limit):
128
M-Bus search modes:
Primary, secondary
Maximum cable length:
1000 m (100 nF/km, maximum 90 ohm)

Wireless M-Bus Receiver

M-Bus slave interface

General

Script engine:
Intelligent script engine for active content generation
Software/firmware update:
GSM/GPRS/HTTP
Metering reports:
HTTP, FTP, SMTP (e-mail)

Data storage (examples)

1 meter:
500 days
8 meters:
63 days
32 meters:
16 days
64 meters:
8 days
128 meters:
4 days

Mobile Network

GPRS class:
Up to 12
Band:
850/900/1800/1900 MHz

Fixed Network (Ethernet)

Integration

Approvals

EMC:
EN 61000-6-2, EN 61000-6-3
Safety:
EN 61010-1, CAT 2

Connections and Interfaces

Transmissions

For downloads, please visit our support site at: https://support.elvaco.com

Our website has gathered all resources you need to update, tune and troubleshoot your installations, such as:

  • Latest software versions
  • FAQs
  • Guides
  • In-depth technical information
  • Support forum
