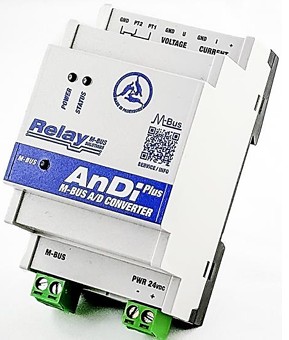

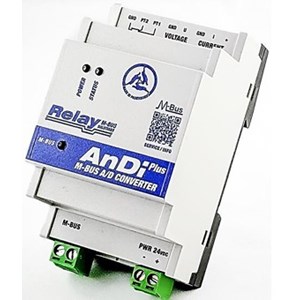

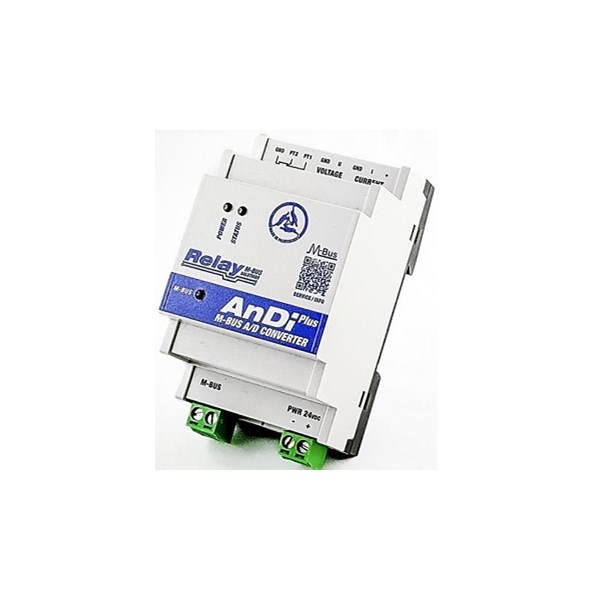

Relay AnDi Plus M-Bus enabled A/D converter

The AnDiPlus is a compact DIN-rail:ed, M-Bus-enabled A/D converter designed to acquire analog and temperature measurement signals and transmit them via the M-Bus protocol. The main features and functions of the device are summarised below:

• Converts analog signals to M-Bus telegrams according to EN 13757-2/3

The device provides M-Bus telegrams containing:

• The measured value from either the voltage (V) or current (mA) input, based on user configuration

• The temperature value from the PT sensor input (always included)

Supports the following input types:

• Current input: 0–20 mA or 4–20 mA

• Voltage input: 0–10 V

• Temperature sensor: PT100 (default), PT1000 (optional)
